AltDVB v2.5

• DVB subtitles (can be displayed only when using VMR9, EVR or MPC Video Renderer)
• added support for “MPC Video Renderer” https://github.com/Aleksoid1978/VideoRenderer To use it in local mode (without registering in the system) download a release archive and extract MpcVideoRenderer.ax into folder \AltDVB\Filters\MPCVR\
• new decapsulation method “TS-TS” : transport stream embedded into payload of packets from one PID, with optional decryption using fixed CW (see \Configs\DecapKeys.txt)
• reworked teletext subtitles parser and renderer, also require VMR9/EVR/MPC-VR to display
• re-added audio A/B switch option, using internal directshow filter
• new scheduler uses Microsoft Task Scheduler 2.0 API (Win7 and later) and no longer depends on AltCMD.exe

Other changes:

• DvbAvSrc.ax filter is now integrated into the main application
• restart playing after the video window is moved to other monitor (VMR7,VMR9,EVR)
• new scanner window layout; more logical & ergonomic buttons position i.m.o.
• when entering scanner the main channel A/V is keeped active until tuning to another frequency
• re-tune to the last channel when exiting the scanner window.
• scroll with mouse wheel when hovering over the control (in MainForm, Scanner, EPG Viewer)
• configurable mouse middle click action; default: MiddleClick=toggle floating window, Ctrl+Middle=toggle mute
• stay-on-top option for floating window. Single click on tray icon brings window to front.
• hotkey Ctrl+F to focus “find channel” edit box
• hotkey Ctrl+J to toggle video renderer statistics (right now works only with MPC-VR)
• when channels are grouped by “Frequency” the parent node shows decapsulation parameters (if any)
• volume adjust slider from channel editor is disabled, if not enabled in [Settings]->[General]
• button [Infos] from main window was deleted, all submenu items moved to button [Tools]
• option to select filter type in PID recorder window
• option to add extra PIDs when start channel recorder (NIT,SDT,EIT,TDT), default values configured from [Settings->Recorder]
• option to disable elementary streams sorting after scan (default: sort by kind)
• the audio and subtitle PID are preserved when updating the channel, if they are still available after rescan
• added [Screenshot], [Mute/UnMute], [Audio] and [Subtitle] selector in the video window context menu
• aspect ratio “Auto” based on detected video mediatype
• aspect ratio saved per channel
• increased maximum number of PIDs allowed into recording slot from 16 to 32
• added PID filter type FTS_DAV = Full TS with decrypted audio/video
• allow to add transponder with the same frequency,polarity but different decapsulation params (PID,PLP)
• allow to save channels with the same frequency,TID and SID but different input stream (MIS)
• added ONID (from SDT) to channel identifiers
• teletext parser reads the charset from X/28/0 and X/28/4 first triplet, if broadcasted
• teletext pages updated correctly if bit C11_MagazineSerial is set
• diffs report after channel rescan
• new subtitle settings page
• subtitles can be enabled/disabled/switched with double-click on channel ES list
• subtitle status indicator on the current channel’s ES row:
  “Green dot” when first valid subtitle is received
  “Red triangle” on error
  (see indicator hint for more infos: bitmap size, teletext charset or error message)
• new command line parameters:
  /DEV ,, – start with specified DVB device, example /DEV Dev_BdaDriver.int,DVBS,1FDC
  /MON n – start application on specific monitor n , n > 0

Scanner window:

• sorting of transponders list by clicking on columns header (“Sort by” combobox was removed)
• new column in TP list to show number of saved channels + hint with the names of first 20 channels.

Satellite edit window:

• bugfix: raw command shows incorrect value “00 00 00 ED” when switch type = none.
• the text “DISABLED” is now replaced with an empty string.
• use configured frequency units (KHz/MHz) for LOF values

TS analyzer:

• count lost packets
• non-modal window (useful to check discontinuities right after tuning to a new transponder)
• data rate changed from KB/sec (KiBytes/sec) to Mbps (MegaBits/sec)

Dev_BdaDriver.int:

• bugfix: skip configuring PLS=None on TBS USB devices before tuner initialization
• device ID is derived from hardware ID. It should help in cases where you have multiple USB devices and you disconnect one of them. In the previous version the ID was changed because it represented the device index in the BDA enumeration, now it should only change if you change the device USB port or PCI-E slot. If needed, can be reverted to old mode by editing Dev_BdaDriver.cfg

Fixed bugs:

• bugfix: uncommitted LNB4-16 reverted to LNB1 when re-edit satellite (link)
• bugfix: Channels menu item from tray icon not linked to any action (link)
• bugfix: bug related to T2MI, scanning/tunning same frequency & multiple PLP (link)
• bugfix: DeliverySys value from channel not passed to tuner request params. (link)
• bugfix: the EPG parser stops when closing EPG window even if background parser is enabled in settings
• bugfix: in fullscreen mode, the mouse does not hide after 2 seconds of inactivity
• bugfix: last channel & last selected satellite were reset after using different device type (DVB-C/T)
• bugfix: incorrect draw of teletext doubleWidth/doubleSize characters
• bugfix: teletext window cannot be resized from left or top
• bugfix: bad position of some windows on multi-monitor system

AltDVB v2.4

• Highlights:
  – hardware interface: maximum devices extended from 8 to 64
  – decapsulation of T2-MI streams
  – LAN streaming, with remote control for VLC 3.x and MPC-HC
  – unicode text for channel name, provider, EPG events. Characters decoding as is described in ETSI-EN-300-468 (v1.16.1), using internal tables for char translation of ISO-6937 and ISO-8859-05..ISO-8859-15 and windows CodePages 20949,20936 for KS-X-1001 (Korean),GB-2312 (Simplified Chinese)
  – channel’s internal structure was changed to allow max 32 ES, 32 CA and channel/provider name up to 127 chars (UTF8).File extension was changed from *.adcl to *.adch
  – screenshots button + hotkeys ([CTRL+S]=Current window, [CTRL+SHIFT+S]=Video window, [CTRL+ALT+S]= All app windows)
• Other changes:
  – added quick LOF settings for Ka Band, C Band Extended & X Band
  – allow plugins to alter TS packets (eg. Pow..Vu E m u)
  – option to select frequency units KHz/MHz (see Settings->General)
  – added detection of stream type 0x32 = VVC (no parsing/demuxing yet)
  – option to set default character set per transponder. Default: ISO-6937 DVB Superset
  – the buttons with key from main window are hidden if no plugins loaded and enabled
  – option: Don’t decrypt recorded channel
  – save composition and ancillary page from subtitling descriptor
  – device selector is now vertically resizable & remember lists height
  – satellites list: minor GUI changes, font changed
• Scanner window:
  – the columns in transponders list can be hidden (right-click on columns header)
  – window remembers width/height and hidden TP list columns
  – fixed non-working menu item “Select TP with scan errors”
  – text search in the transponders list (visible columns only)
  – added some keyboard shortcuts to transponders list + mouse action [Ctrl+LeftClick] for check/uncheck
• Scan result (update button from scanner)
  – window is now resizable and remembers dimensions
  – window has incorporated channel differences
  – detailed differences report for ES and CA lists
  – save differences report to .csv file
• Channels tree:
  – width of info column is adjusted based on content displayed
  – not using fixed font for root/group nodes
  – option to show SID into info column
  – search text also search in group nodes caption
• EPG:
  – automatically resize short event text box to fit content
  – bottom panel (short & extended event descriptor) is resizable
  – parse and display extended event items

AltDVB v2.3

• added support for HEVC

• added support for AAC,AAC-LATM and EAC3

• added support for EVR – Enhanced Video Renderer

• experimental built-in support for PLS and MIS.Currently only for TBS devices using my Dev_BdaDriver.int.

• simplified directshow config

• portable: doesn’t use registry to store settings, run as standard user (without admin rights)

• new version of DvbAvSrc.ax, used directly, does NOT need to be registered in the system using regsvr32.exe

• added support for “internal” directshow decoders (only LAV filters, for now)

• some optimization in TS packets demuxer & A/V stream path

• removed some unused/obsolete features (SDX files & coverage images,…)

• new directory structure.(files from dir. [SatFiles] moved to \Channels, \Configs, \Transponders)

• new file format for channel list.

• new file format for transponders with saving informations about signal

• channel search by name moved above list

• new options for better filtering channel list

• introduced kHz precision for frequencies

• external config file for CA names

• added more MODCODE’s and Roll-off values

• fixed a lot of bugs, added new ones 🙂
• Old Non-BDA interfaces:
  * New: Dev_TTBudget.dll
  – need drv. 2.19h (28.11.2006)
  – you have to copy “ttlcdacc.dll” (ver. >= 2.19.8.1) into ..\AltDvb\Devices\
  – tested with S2-3200
• * Dev_SkyStar2:
  – fixed DiSEqC command when using driver >= 4.4.0
  – built without VCL

2006-10-22 .:: Alt-DVB Ver 2.2 ::.

Uyarılar:

• Premium (SkyStar1) kartlara artık destek yok..
• Eski arayüzler (Dev_???.int) yeni programla uyuşmaz..

Program :

• MPEG4/AVC Stream parser & demultiplexer desteği eklenmiş..
• Multi monitör desteği eklenmiş..
• DVB-C/DVB-T/ATSC desteği verilmiş..
• Çoklu kart seçebilme eklenmiş..
• EPG/Channel ana pencere içinde görünecek şekilde eklenmiş..
• Mouse wheel hareketleri eklenmiş..
• Ekran yapılandırılması yenilenmiş..
• İşlem önceliği seçimi eklenmiş.
• Kanal tarama geliştirilmiş..
• Tray icon a pop up menü eklenmiş..
• Kanal list i uyduya göre filtreleme seçeneği eklenmiş..
• PIP1-2-3 seçme butonu eklenmiş..

Arayüzler:

• Yeni: BDA driver eklenmiş..
• DiseqC: Twinhan BDA drivers a Raw diseqc desteği eklenmiş..
• DiseqC: LNB1-4 DvbWorld için seçim eklenmiş..
  DiseqC: LNB1-4 Technotrend (via put_Range() ) için seçim eklenmiş..

* Yeni: DVBWorld kart desteği eklenmiş..
- RawDiseqC desteği şimdilik yok. (Dev_DvbWorld.cfg dosyasına bakın)

* SkyStar2 :
- SS2 yeni driver (4.4.0) için RawDiseq desteği eklenmiş..
- "Internal" PID filter içinde bazı değişiklikler yapılmış..

Düzeltmeler :

• SS2 driver v4.4.0 daki sinyal göstergesi düzeltilmiş..
  ES/CA penceresinde hiçbir kanal seçilmediğinde Popup menu istisnası düzeltilmiş..
  Gidilen konumu kaydetmemehatası düzeltilmiş..
• Dualcore ve HT işlemcilerde kullanılan CPU göstergesindeki hatalar düzeltilmiş..
• DvbAvSrc.ax içindeki PTS deki hatalar düzeltilmiş..

Warnings:
- Premium cards (SkyStar1) not supported anymore.
- Old interfaces (Dev_???.int) are not compatible with new app.

Application:
* MPEG4/AVC Stream parser & demultiplexer
* Multi-monitor support
* Support for DVB-C/DVB-T/ATSC
* Multiple cards selector
* EPG/Channel (in main window)
* Mouse wheel actions
* New configuration window
* Process priority option
* Improved channel scanner
* Popup menu from tray icon
* Channels list can be filtered by satellite
* PIP1-3 selection buttons

Interfaces:
* New: BDA Driver
- DiseqC: Raw diseqc support for Twinhan BDA drivers
- DiseqC: LNB1-4 select for DvbWorld
- DiseqC: LNB1-4 select for Technotrend (via put_Range() )

* New: DVBWorld
- RawDiseqC not suported now. (see Dev_DvbWorld.cfg)

* SkyStar2 :
- RawDiseq for SS2 new driver (4.4.0)
- Many changes in "Internal" PID filter

Fixed:
* Signal indicator for SS2 & driver 4.4.0
* Popup menu exception on ES/CA window if no ch. selected
* Adjust GOTO with location NOT saved !
* Fixed CPU usage indicator for dualcore/HT processors
* Fixed PTS in DvbAvSrc.ax
* .....

08.06.2006 Güncelleştirmeler ?

08.06.2006 Bazı Güncelleştirmeler
Arayüzler:
* Bütün arayüzler: FFDecsa packets processor deki büyük hata düzeltilmiş..
* Pinnacle: 30000 SR li TP lerdeki tuning hatası düzeltilmiş..(thanks to Leonid P.)
* Twinhan : Model şeklinde kart seçimi eklenmiş..( Dev_Twinhan.cfg dosyasına bakın )
* SkyStar2:
v4.4.0 daki sinyal barı problemi düzeltilmiş..
raw DiseqC seçeneği eklenmiş..Kullanılması için 4.3.2 driver yüklü olmalı..
SS2 USB desteği eklenmiş..

2006-06-08 Some updates
Interfaces:
* All interfaces: Fixed BIG bug in FFDecsa packets processor
* Pinnacle: Fixed tuning for transponders with SR >= 30000 (thanks to Leonid P.)
* Twinhan : Option to force a specific card type (see Dev_Twinhan.cfg)
* SkyStar2:
Signal indicator for driver 4.4.0
Native raw DiseqC if driver >= 4.3.2
Can be used with SS2 USB version

AltDVB v2.1 Çalıştığı Sistemler

• Win9x ( Win98 SE de test edilmiş..)
• Win XP
• Win 2000

AltDVB v2.1 Desteklediği DVB-S Kartlar

• SkyStar-1 ( Hardware ve Software Mod desteği )
• SkyStar-2 PCI ve USB ( USB desteği 08.06.2006 SS2.int device dosyasında verildi..)
• Twinhan VisionPlus versiyonları
• Nova PCI
• Pinnacle PC TV Sat ( CI da çalışmıyor )

AltDVB v2.1 Başlıca Özellikleri

• PIP ve PIP2 desteği ( Aynı anda ana ekran dahil 3 şifresiz veya açılabilen şifreli kanallar izlenebiliyor
• Çoklu kayıt desteği ( Aynı anda 8 şifreli veya şifresiz 8 kanal .ts formatında kayıt edilebiliyor..Aynı anda 3 şifreli kanal şifresiz kayıt edilebilir..
• Network desteği
• Komut satırı desteği
• Avi ( Divx, Xvid ) oynatma desteği
• Diseq motor 1.2 desteği
• Dahili Teletex desteği
• Kanallara kilit koyma özelliği
• Zamanlayıcı
• TP ini dosyaları net den güncelleme
• Kanalları geniş filtreme özelliği
• Uydu taramada Tuner lock time özelliği ( özellikle sinyal geç gelen TP ler için çok faydalı özellik )
• Mouse, Keyboard, Kumanda desteği ( sınırlı )
• EPG
• Geniş plugin desteği
• Otomatik GRF yapma özelliği

AltDVB v2.1 Eksikleri

• OSD
• Kumanda komutların azlığı
• Ekran Dizaynı

AltDVB WebPage

https://www.altx.ro/

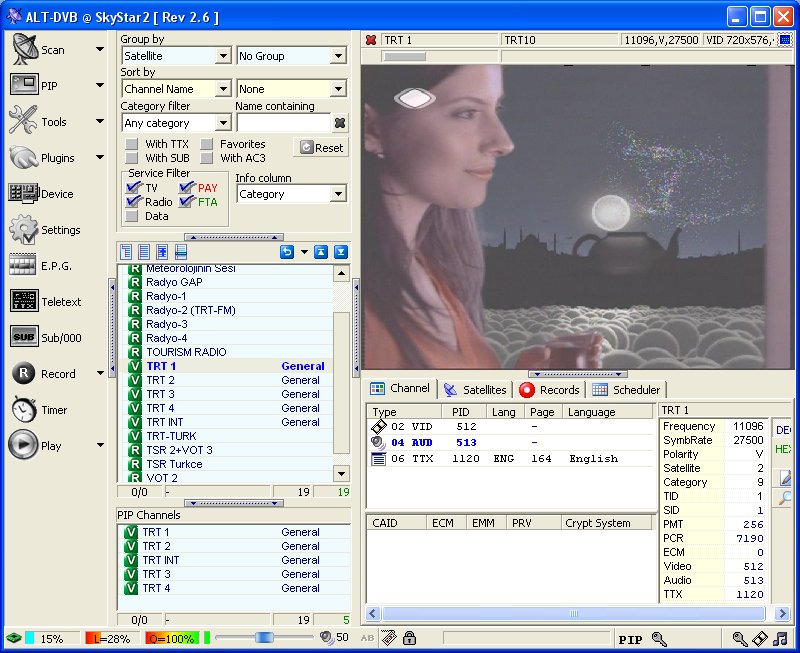

AltDVB 2.1 Screen Capture
